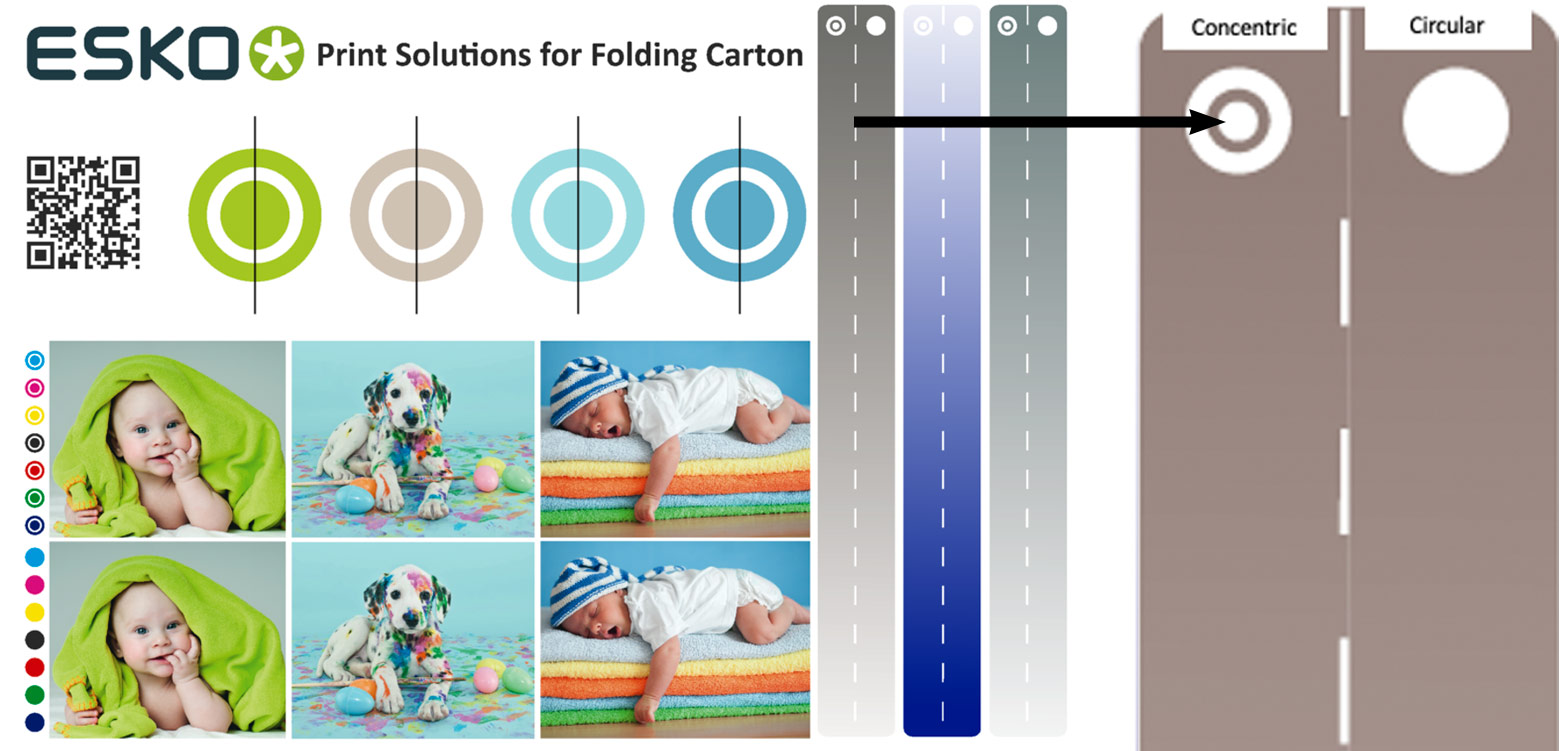

Concentric vs Standard Screening

Printing on recycled substrates creates some challenges for the printer. The rougher surface to the paper and difference board fiber quality has a negative effect on ink transfer. Utilizing Concentric screening allows for a smooth transition from traditional virgin boards to recycled boards for high quality sustainable print results. The samples highlight better color saturation, higher LPI for improved print quality all with reduced ink consumption which yields ink savings.

Used Printing Technologies

Printing Press

Heidelberg

Ink

Sun Chemical

Plates

Kodak Thermal

Substrate

Recycled Coated Box Board

Screening

Concentric 200lpi Standard Circular Screen 175lpi

Color Management

Profile creation for CMYKOGV & CMYK using Color Engine
Color Strategy to create the ECG setting using Color Engine
Color Conversions using ArtPro+ Equinox

Highlights

Reflex Blue

Reflex Blue is a commonly use color for backgrounds and single color vignettes. Using Concentric with Recycled Boards allows for a smoother ink laydown. In this example we have smoother ink laydown with a higher LPI using Concentric Screening

Even Ink Laydown

Even ink laydown on recycled board liners is easy to achieve with Concentric.

Images

Images have more color saturation (more colorful) with more detail

Sustainability & Cost savings

The ability to fully utilize recycled boards can offer brands new options in their drive for improved sustainability but still attaining high quality print
Ink savings. The Concentric Rings reduces the ink usage typically by 10%
Substrate saving. Using a recycled board vs a virgin board such as GS1 could save up to 25%

Highlights Sustainability dot comparison

Footnote

As Drupa was fast approaching. We only had time for one print run to execute the print samples. This process simulates production, no second chance or re-prints.

This highlights the robustness and stability of the Esko product portfolio, along with our technology partners.
